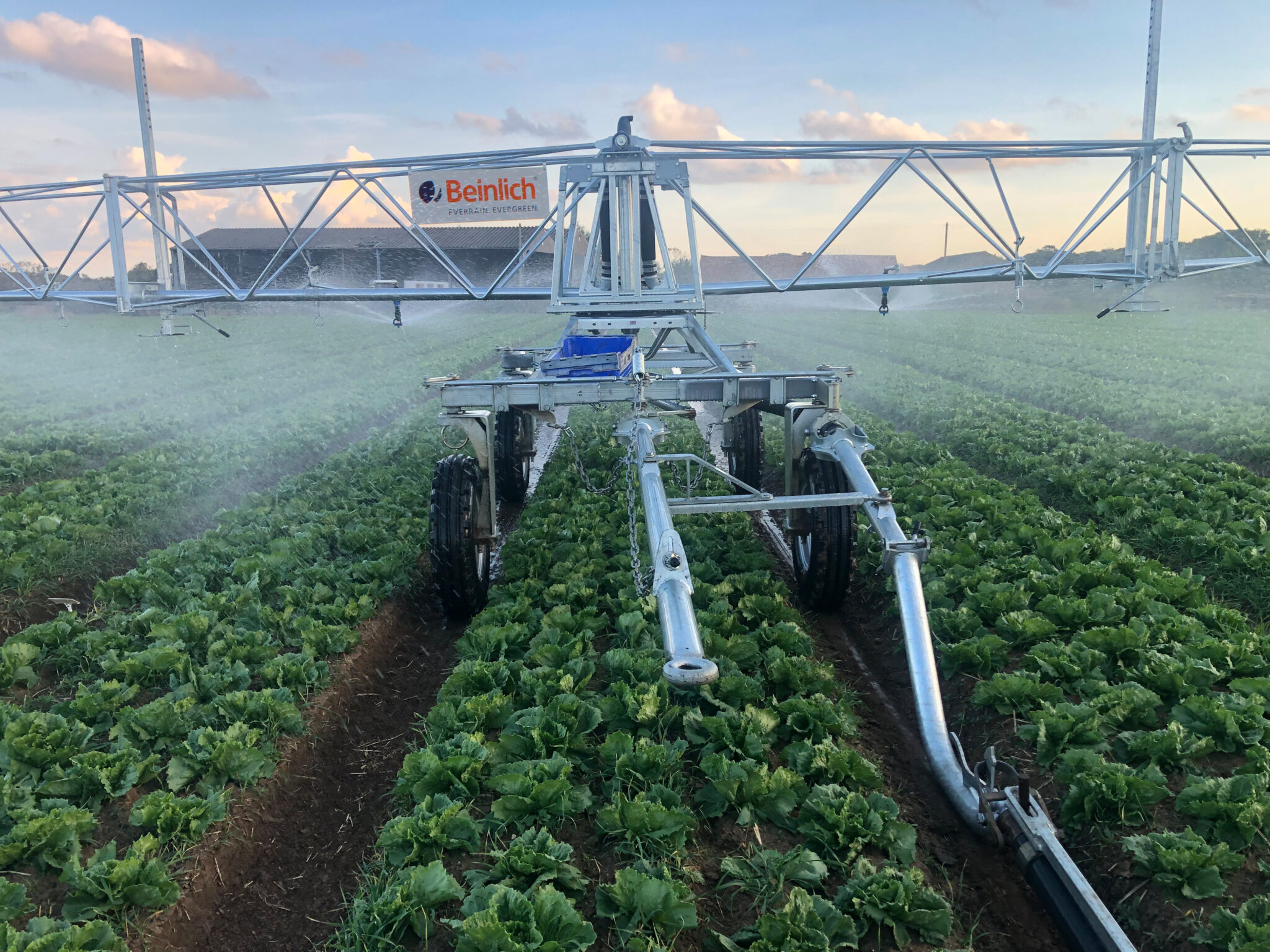

Boom R52
The Boom R52 is designed for close-to-ground irrigation with adjustable droplet size, low wind sensitivity and precise strip width. With 20 outlets, it delivers accurate water distribution and shortens irrigation times, while model-specific working widths, pressure ranges and technical data are shown in the tables.

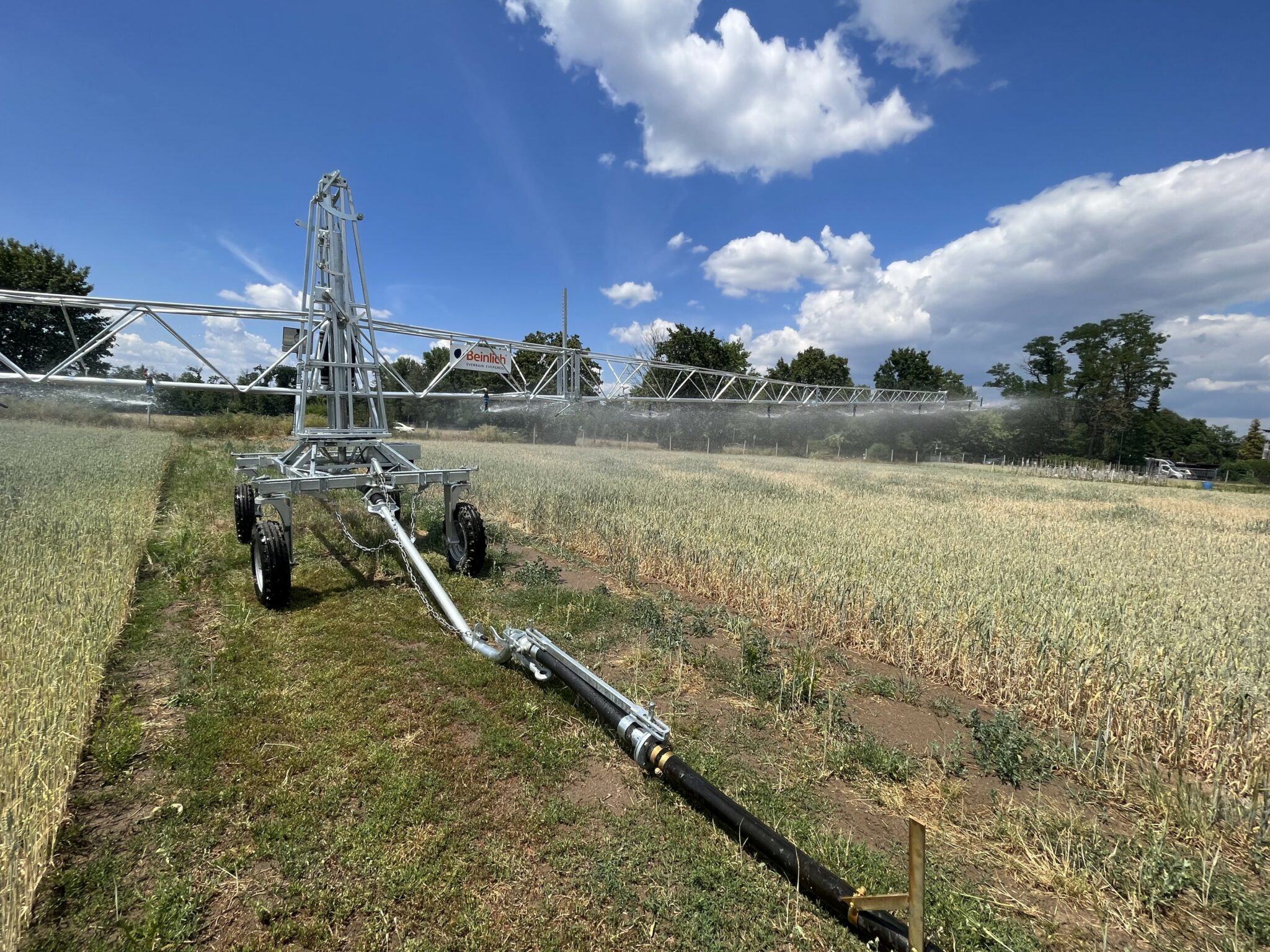

Drawbar with central pipe connection, hydraulically height-adjustable tower up to 3.10 m. Option: electro-hydraulic kit
Separate pipe connection on the side in the tramline
Adjustable droplet size, close-to-ground application, low wind sensitivity and precise strip width
| Parameter | Value | |
|---|---|---|
| Number of outlets | 20 | |
| Length of boom when closed | 6.2 m | |
| Width when folded | <2.8 m | |
| Wheel spacing | 2.9 m | |
| Track width | 1.5–3 m | |
| Nozzle ground clearance | 1.5 m | |
| Overall height | 2.5 m | |
| Height with tower for lifting device | 4.32 m | |
| Weight incl. front and rear connection | >1385 kg | |
| Turning circle | >7.2 m |
