Series Primus

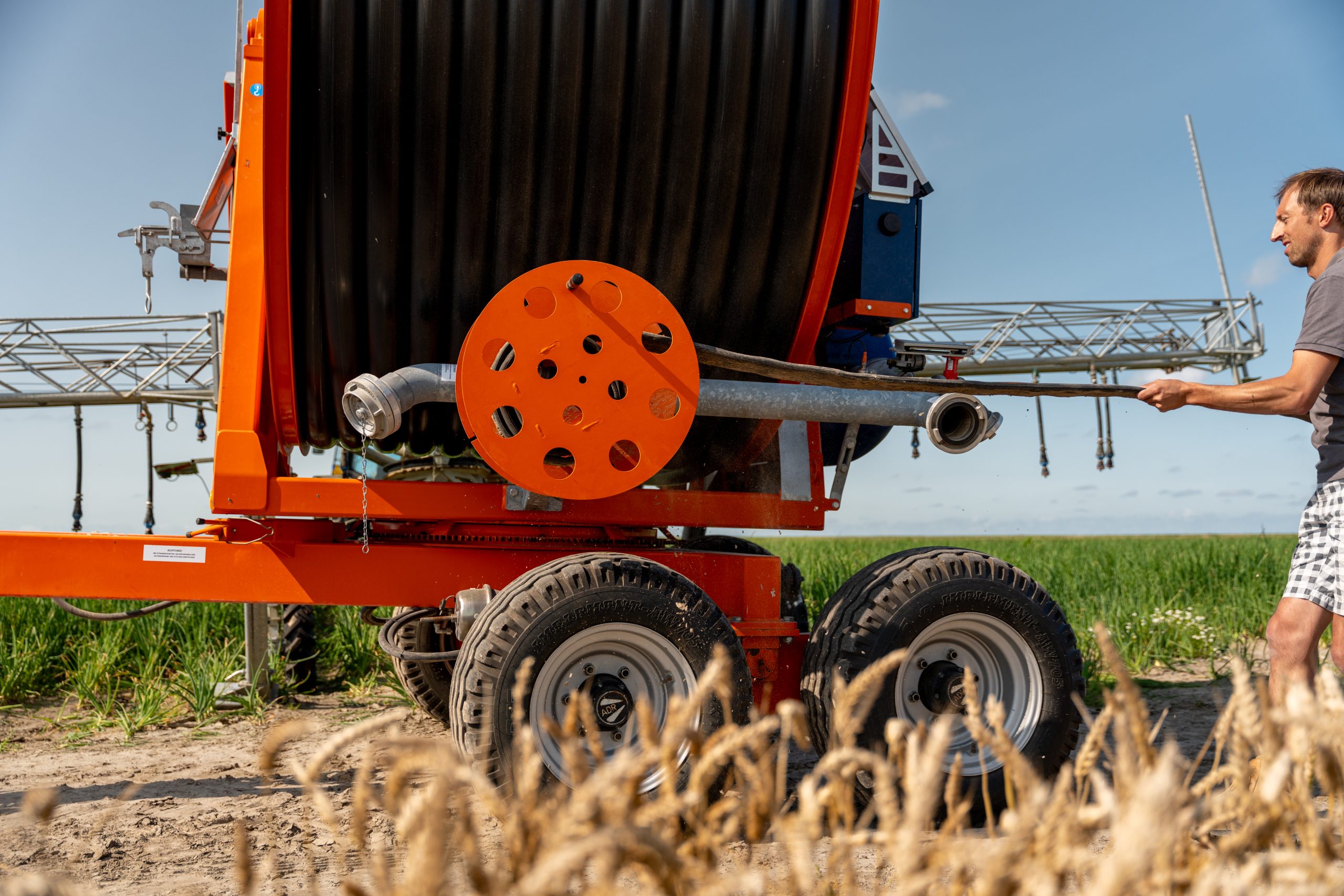

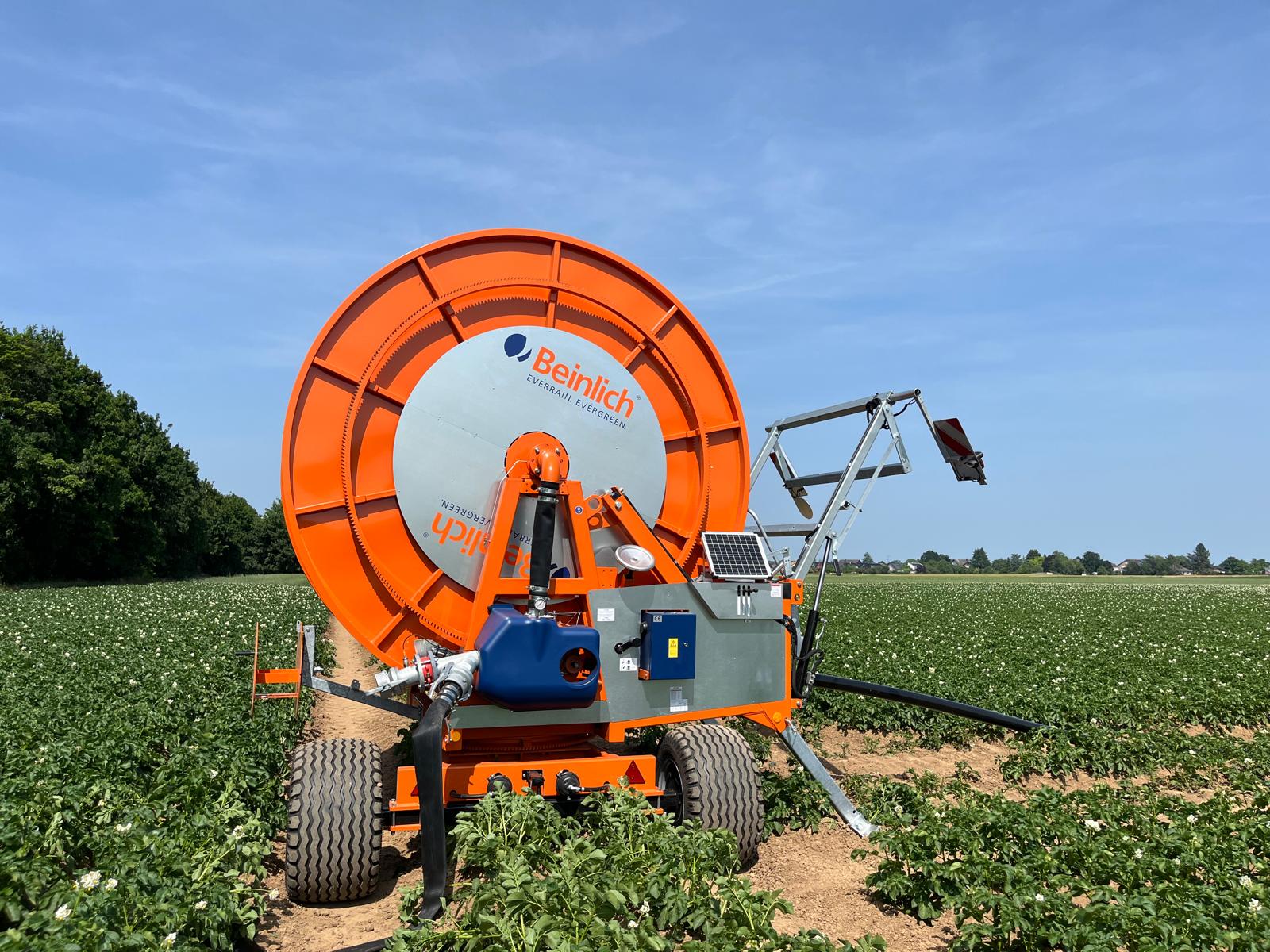

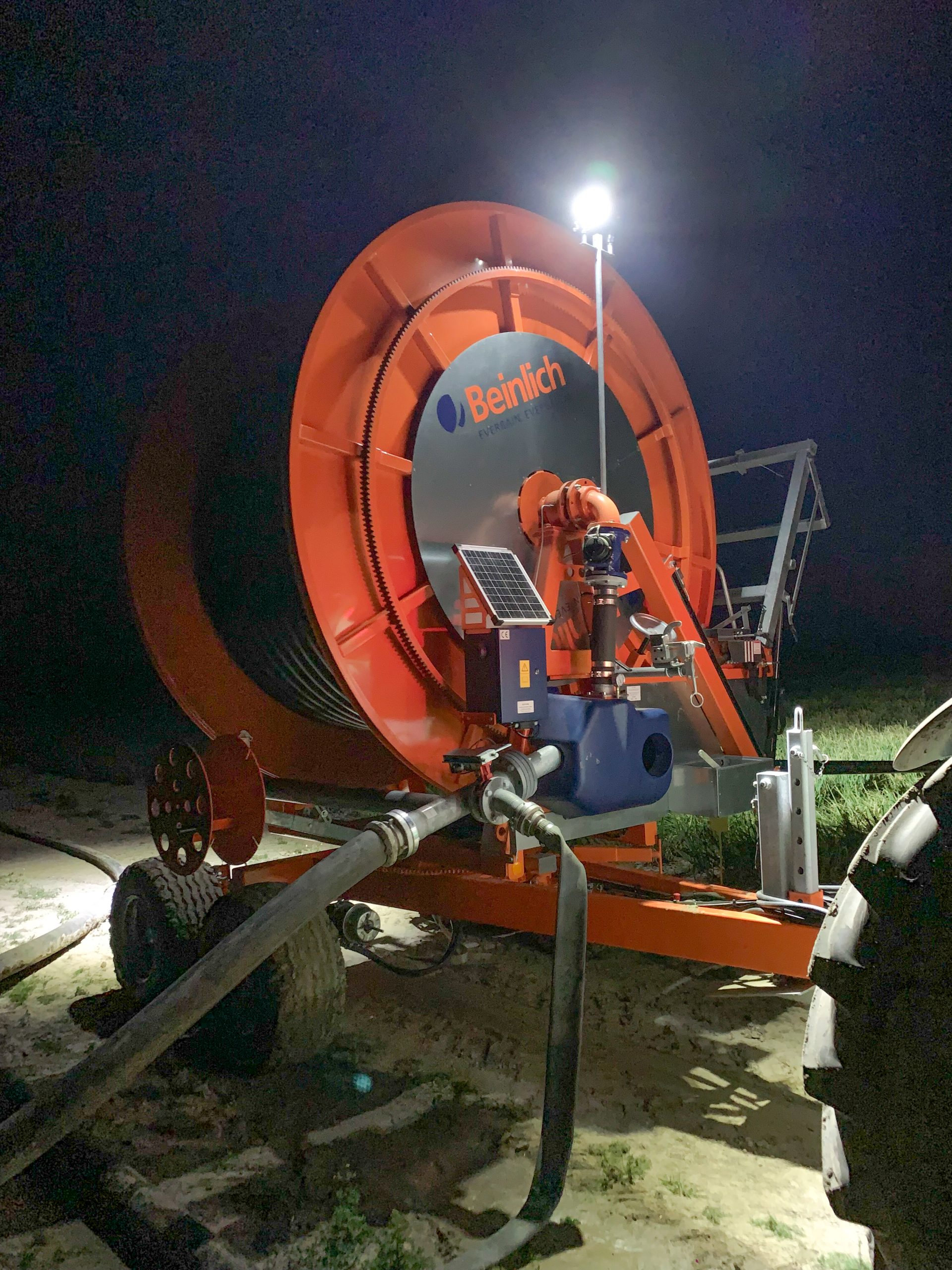

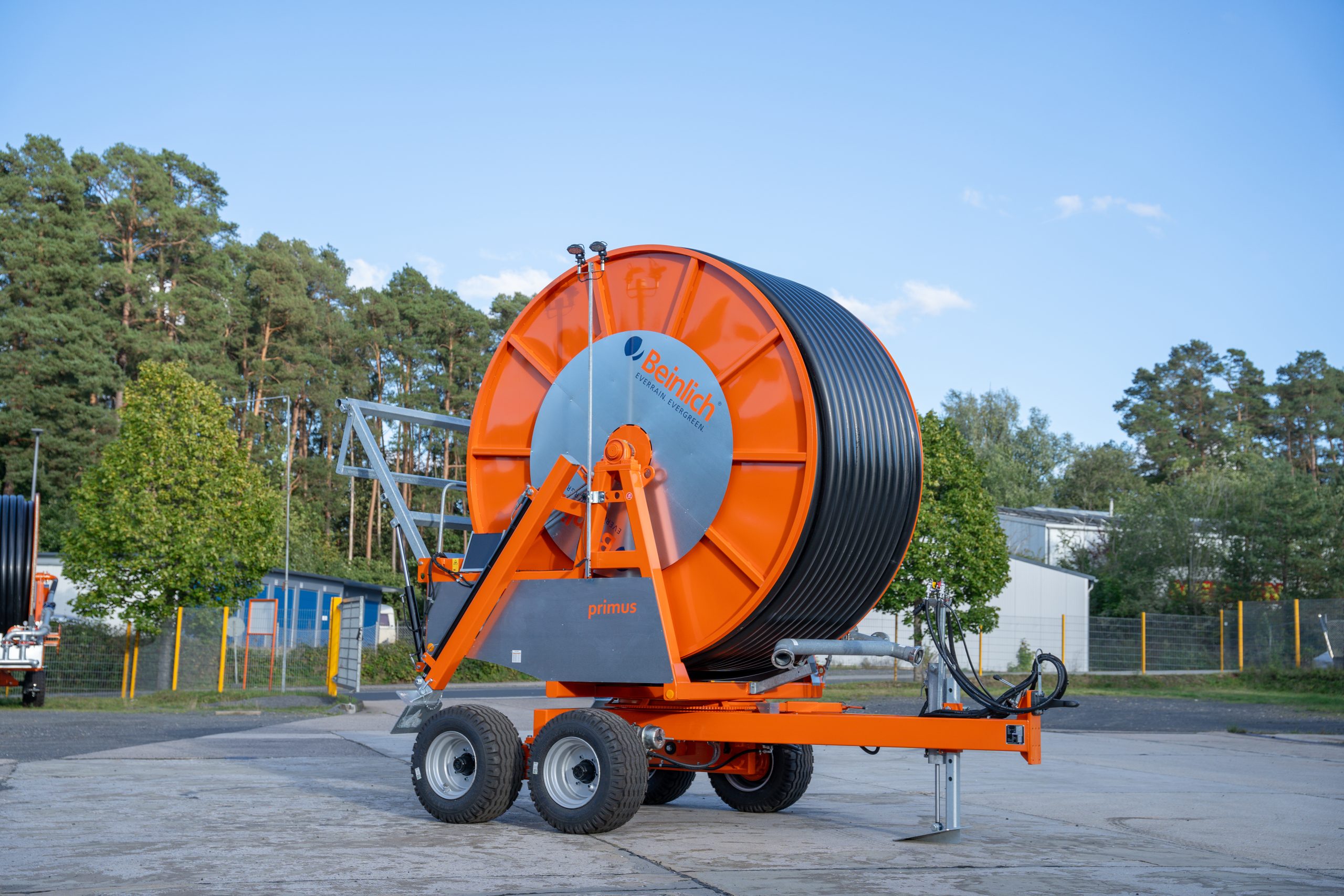

The Primus series is designed for farms requiring a reliable and versatile irrigation solution for medium-sized fields. Available with PE hose Ø 75–125 mm and hose lengths up to 640 m, the range combines robust mechanical construction with modern irrigation management technologies. Key features include Electronics 4KR, EVERRAIN web portal connectivity, GPS/GSM communication, digital water metering, and remote monitoring capabilities. Primus machines are available with different chassis configurations and coupling options to match a wide range of field conditions and irrigation requirements.

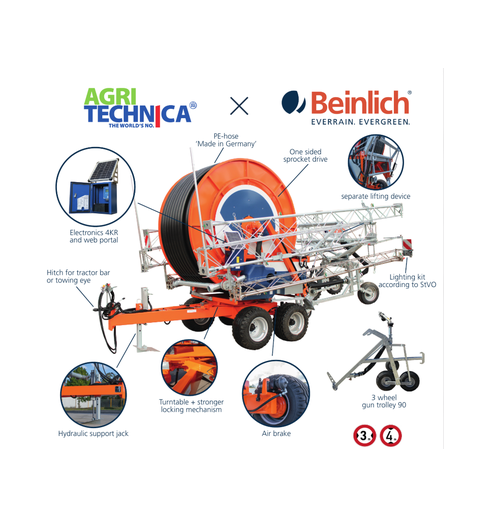

Primus basic specifications

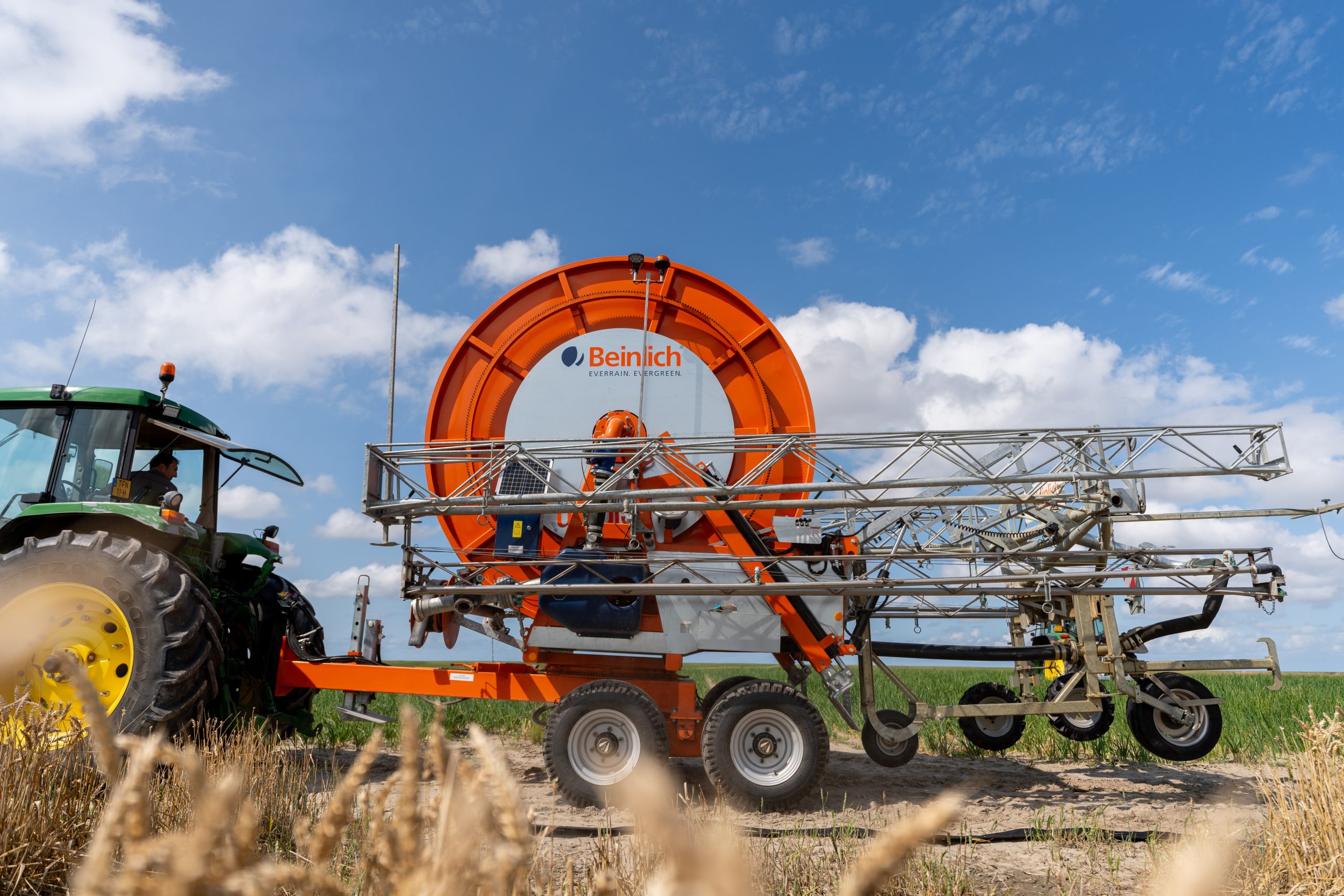

- Many chassis types with or without brake, track width 1.80 m to 2.40 m
- 4-speed gearbox and turbine, integrated bypass regulation
- Single-sided drive via sprocket

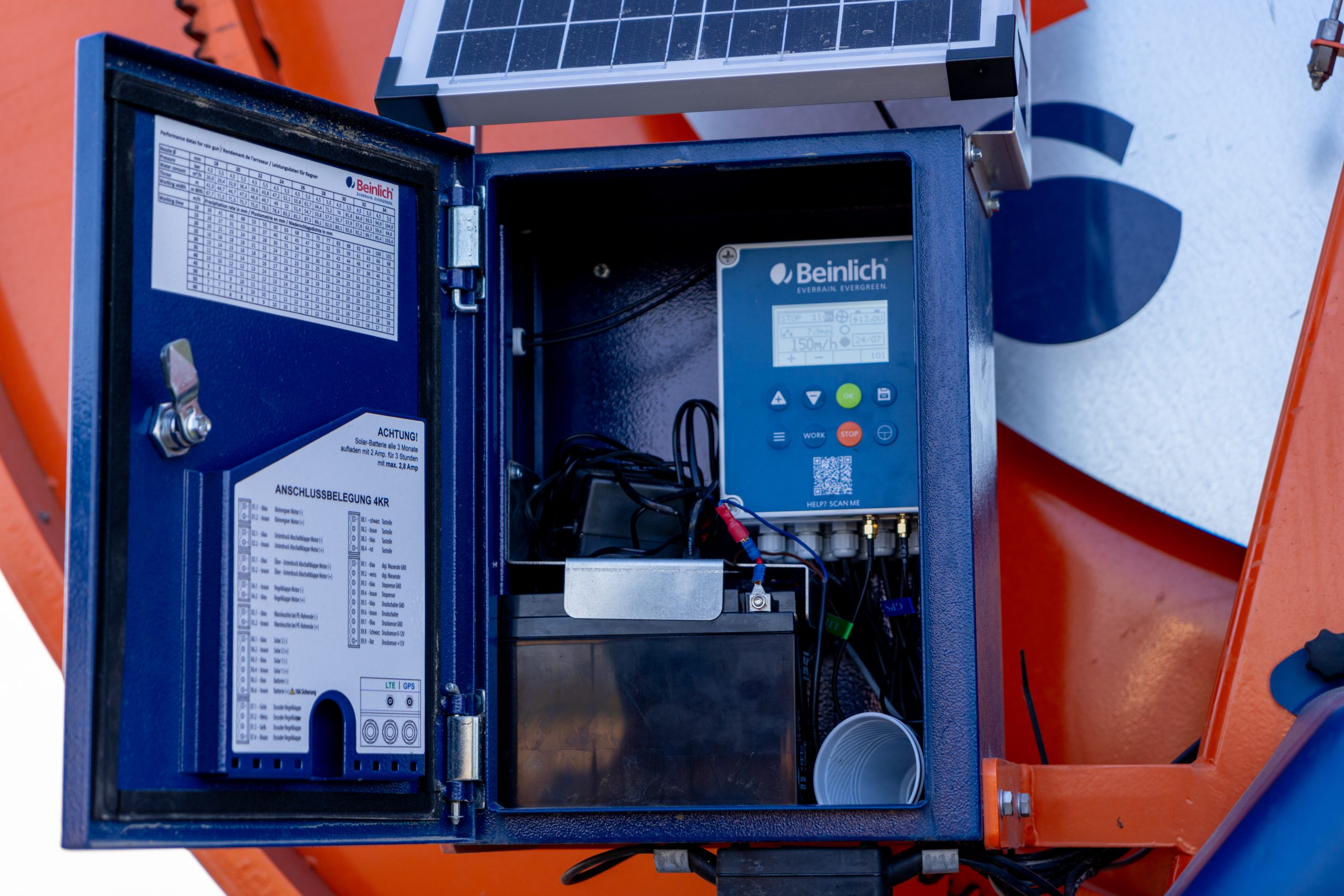

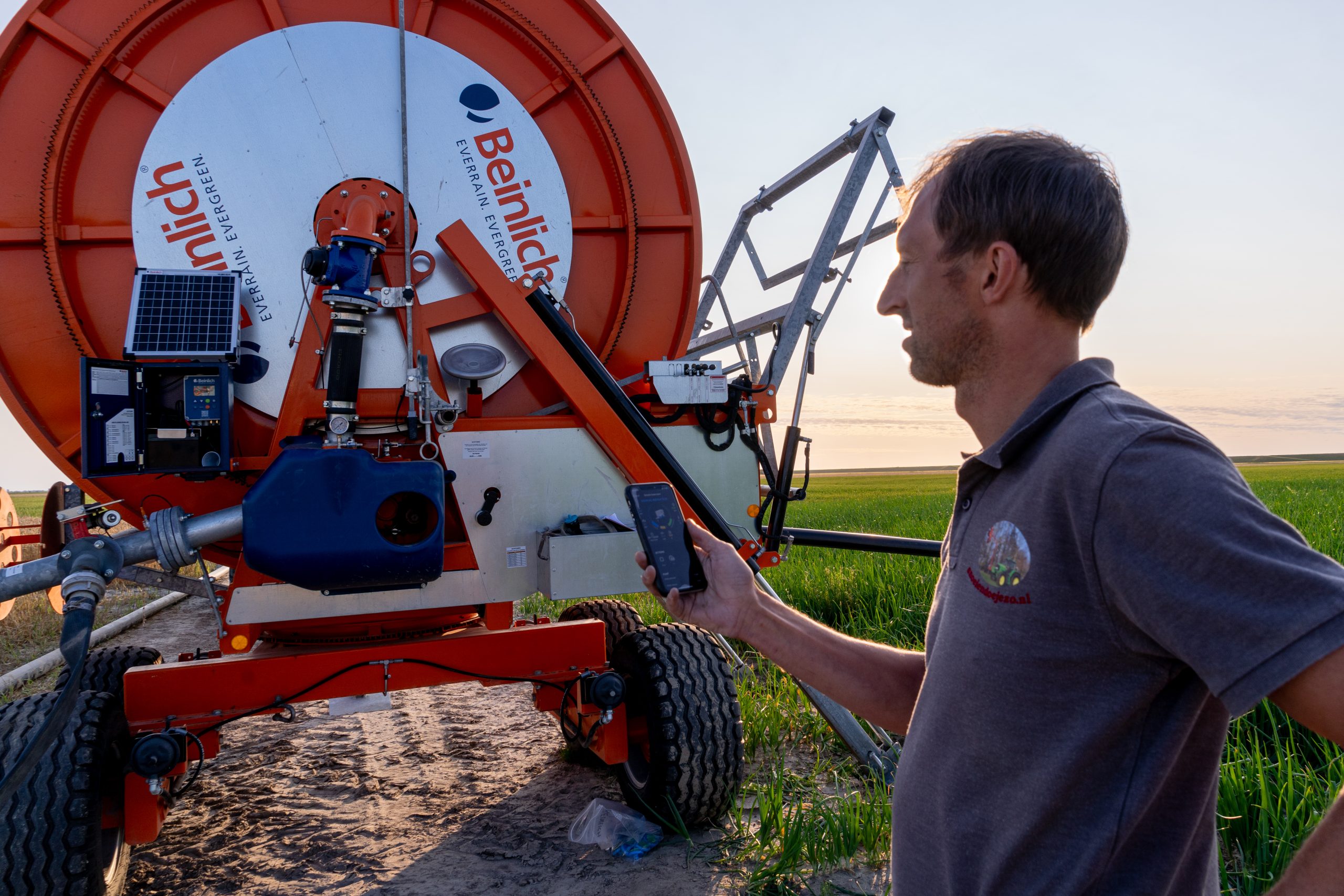

- Electronics 4KR including multi-SIM card, GPS/GSM antenna, 20 W solar panel and 24 Ah battery
- Beinlich „EVERRAIN“ web portal

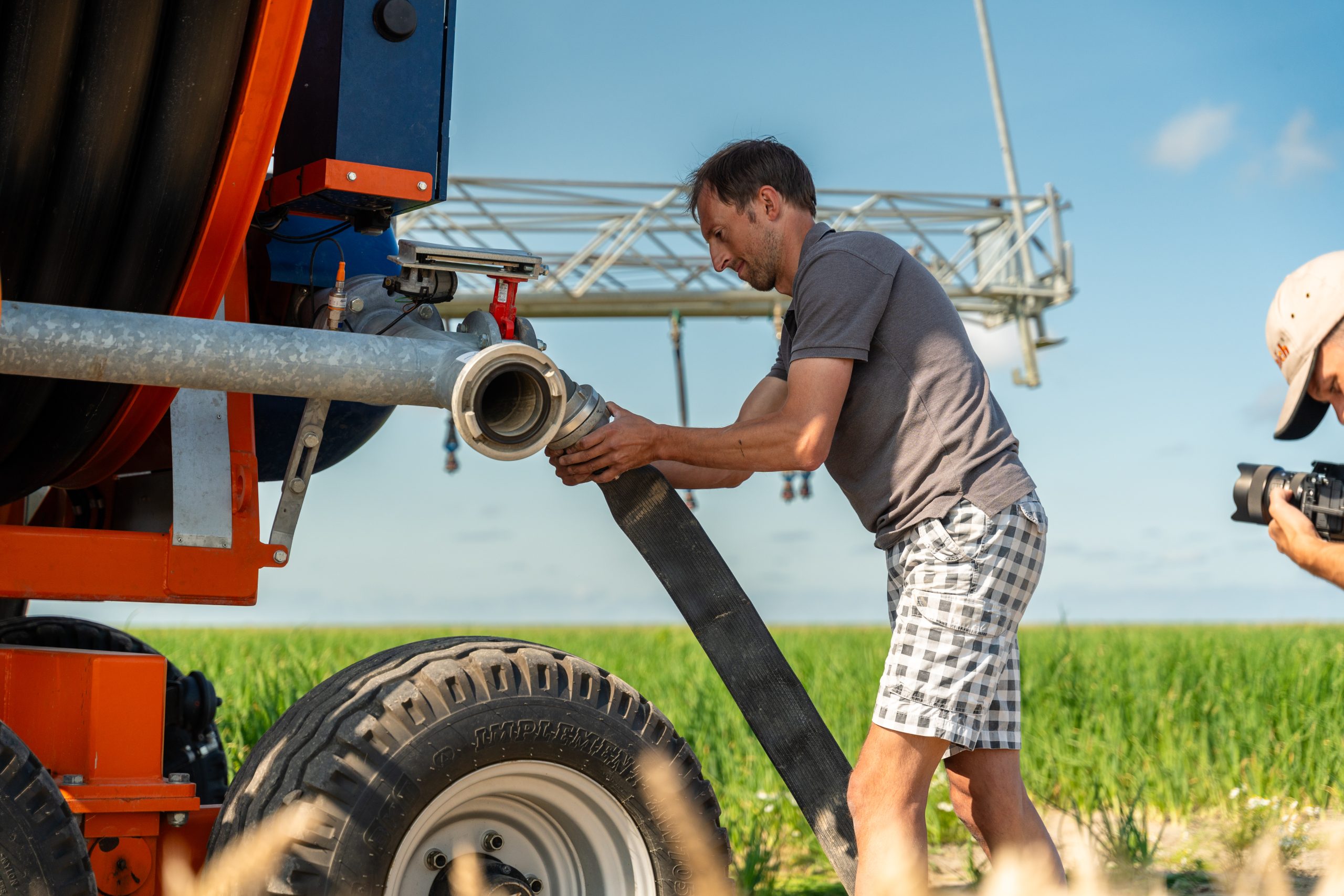

- One-sided water inlet with optional Perrot, Bauer or Storz coupling in 3″ or 4″
- Overpressure and underpressure shut-off

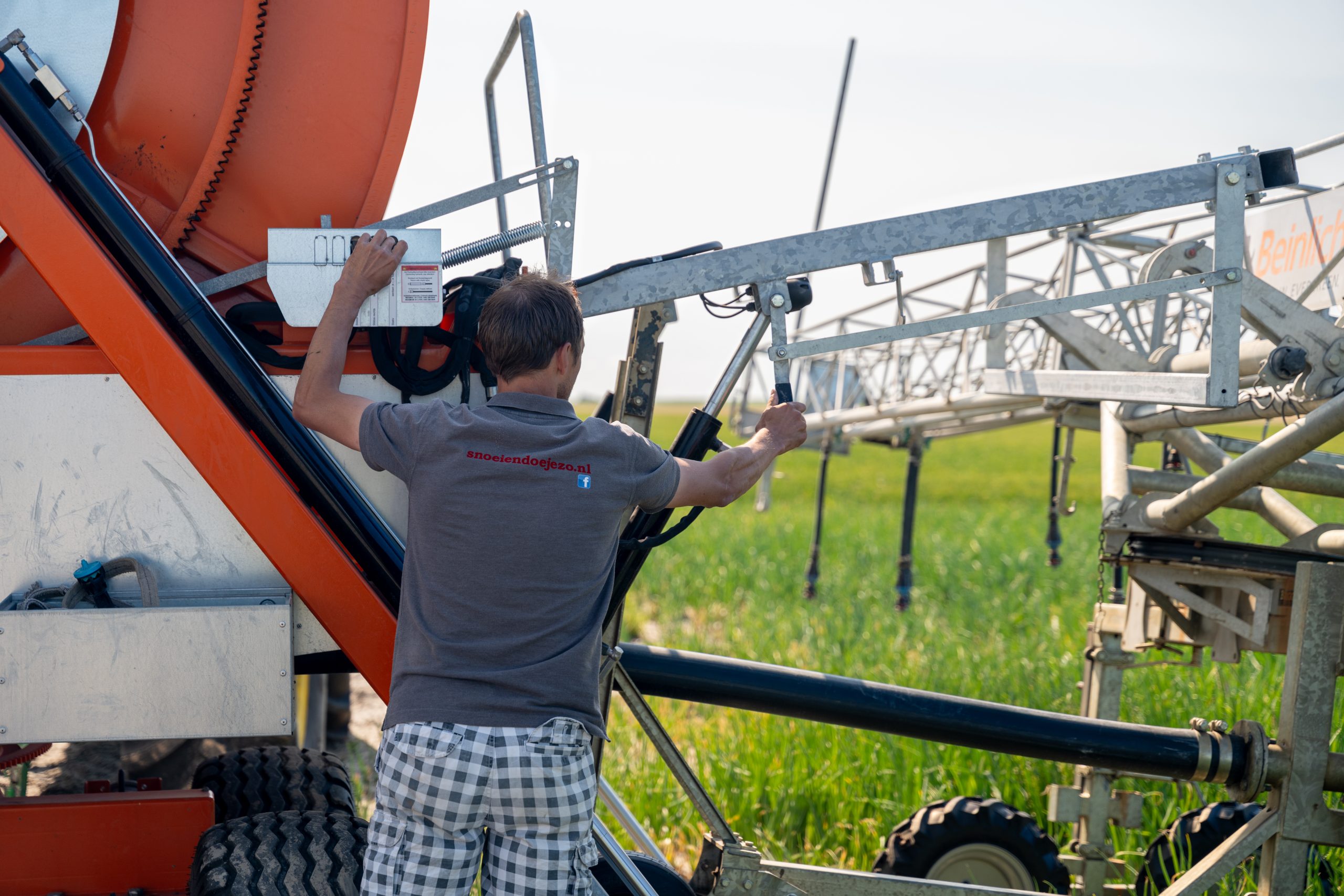

- Gun trolley lifting device in combination with rear hydraulic support legs
- 3-wheel gun trolley 90 with Sime Reflex rain gun including 5 nozzles, 14–32 mm
Recommended additional specification
- Hydraulic lifting device and turntable for gun trolley
- Digital water meter and pressure sensor for remote monitoring
- Close-range sprinkler electronically time-controlled
- Hose reel for winding the 8 m supply hose

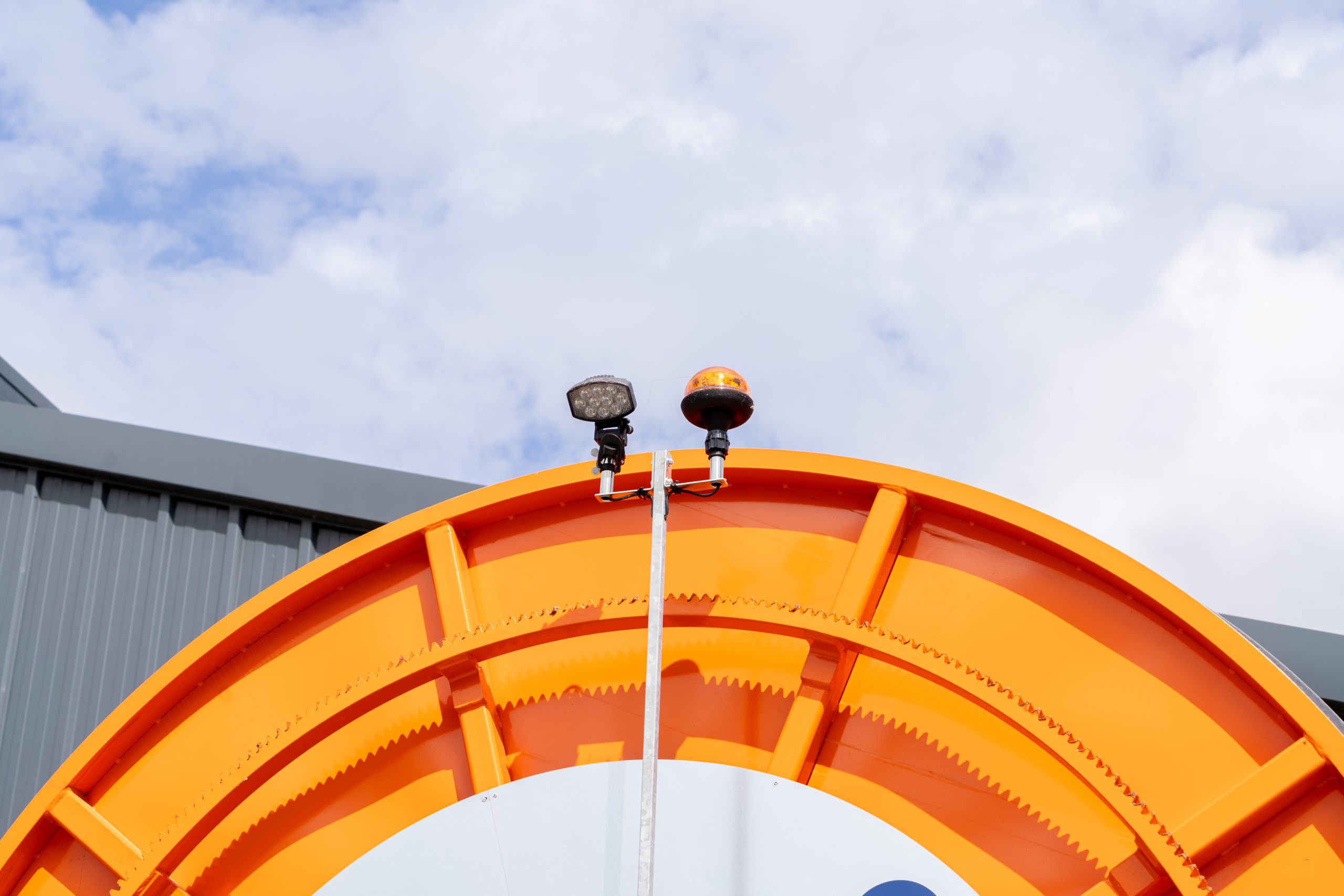

- Air brake and lighting unit according to StVO (German traffi c regulations)
Model
Explore the Primus 2800 Hose Reel Irrigator
